ESP32 C3 Super Mini Development Board in Pakistan
ESP32 C3 Super Mini Development Board in Pakistan
Compact. Secure. Powerful.
The ESP32-C3 Super Mini is an ultra-compact IoT development board powered by Espressif’s RISC-V based ESP32-C3 microcontroller. It features 2.4 GHz Wi-Fi and Bluetooth Low Energy (BLE 5.0), making it ideal for modern wireless, low-power embedded applications where space and efficiency matter.
Designed for both rapid prototyping and production use, this board delivers strong performance, built-in security, and full compatibility with Arduino IDE, ESP-IDF, and PlatformIO.
Key Features
-
ESP32-C3 RISC-V 32-bit processor (up to 160 MHz)
-
Integrated Wi-Fi 2.4 GHz (802.11 b/g/n)
-
Bluetooth Low Energy (BLE 5.0) support
-
Ultra-small Super Mini form factor
-
Low-power modes suitable for battery operation
-
Onboard USB-to-Serial for easy programming
-
Rich GPIO and peripheral support
-
Hardware security with secure boot and encryption
Technical Specifications
| Feature | Details |
|---|---|
| Microcontroller | ESP32-C3 (RISC-V, 32-bit) |
| Clock Speed | Up to 160 MHz |
| Wi-Fi | 2.4 GHz 802.11 b/g/n |
| Bluetooth | BLE 5.0 |
| SRAM | 400 KB |
| Flash Memory | 4 MB (typical) |
| Operating Voltage | 3.3 V |
| Input Voltage | 5 V (USB) |
| GPIO | Up to 11 |
| ADC | 12-bit |
| Interfaces | UART, SPI, I²C, PWM |
| USB | Onboard USB-to-Serial |
| Security | Secure Boot, Flash Encryption, AES |
| IDE Support | Arduino IDE, ESP-IDF, PlatformIO |
| Form Factor | Super Mini (Ultra-Compact) |
Ideal For
-
IoT & Smart Home devices
-
Wireless sensors and controllers
-
Bluetooth LE products
-
Home automation systems
-
Wearables and compact electronics
-
Battery-powered projects
-
STEM education & learning
-
Commercial IoT prototyping
Why Buy ESP32-C3 Super Mini?
-
Smaller than standard ESP32 boards
-
Modern RISC-V architecture
-
Excellent power efficiency
-
Strong security for connected products
-
Cost-effective for bulk and production use
Package Includes
-

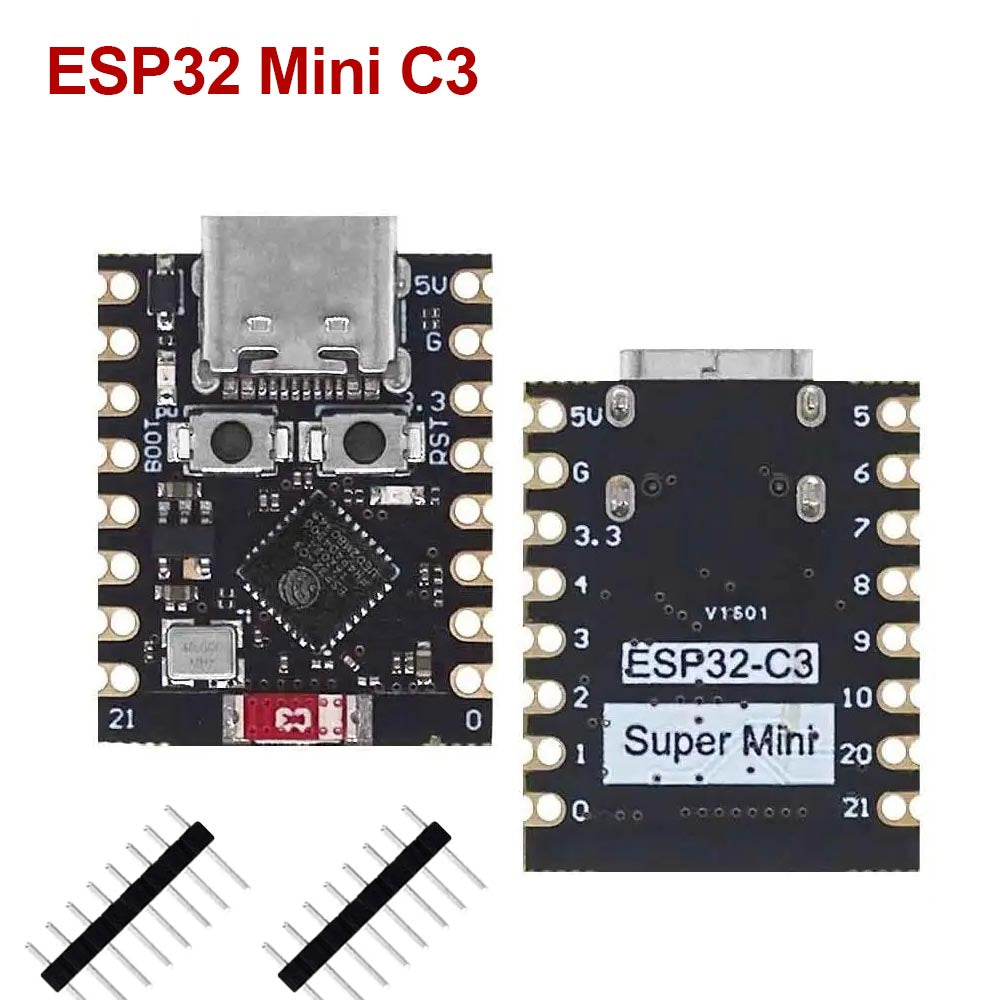

1 × ESP32-C3 Super Mini Development Board
